Vehicle Development, Simplified: The RapidFit Smart Cube

A side-on view of a full RapidFit Smart Cube.

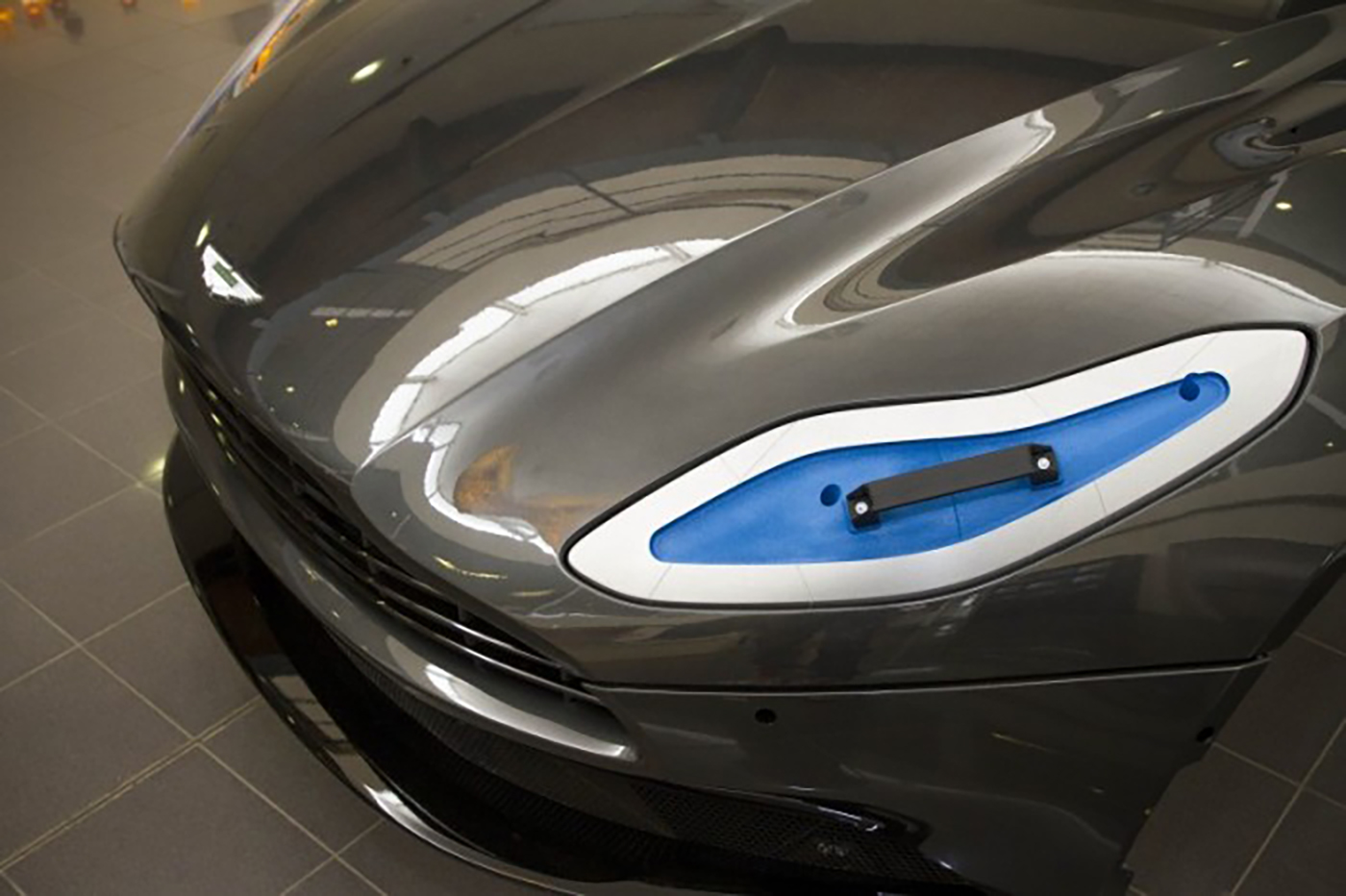

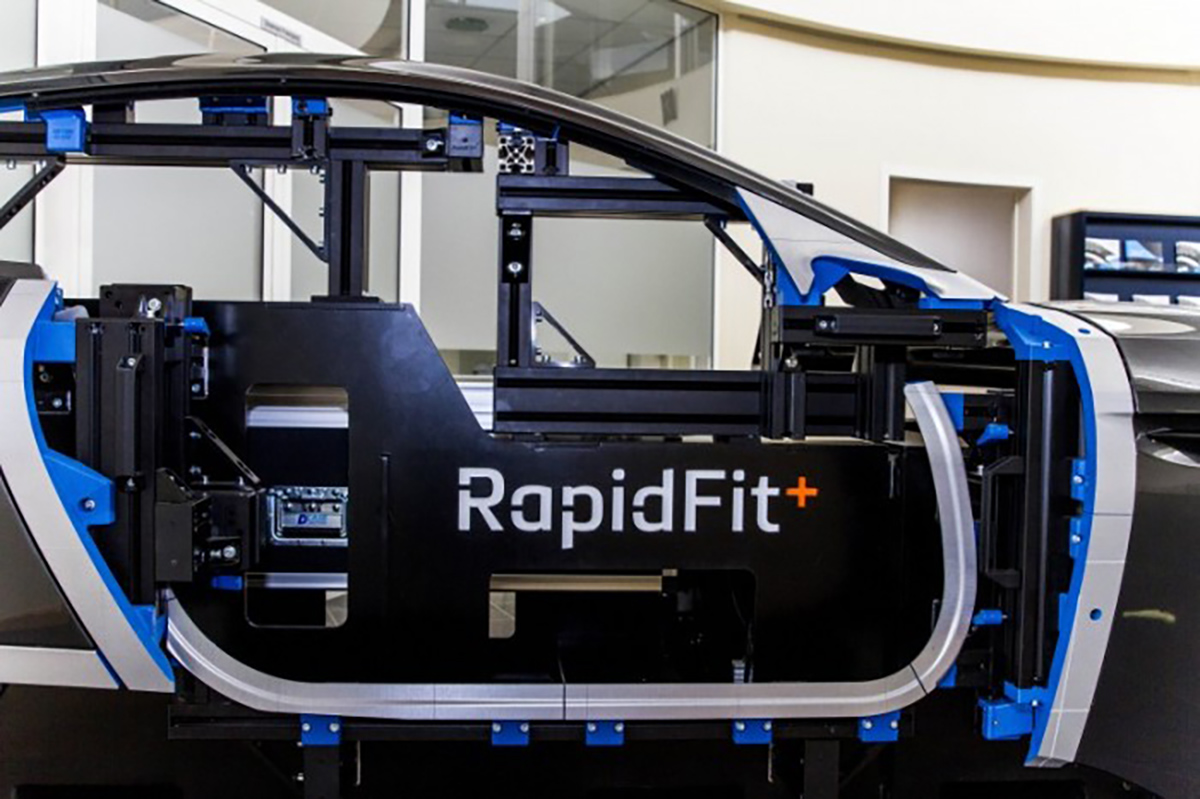

Using a combination of 3D-printed parts and a fully modular approach, RapidFit’s smart cubing system empowers automotive brands to speed up their engineering and development process. It has benefitted everything from an Aston Martin DB11 to the iconic London taxicab. Discover the future of vehicle development, as seen through the eyes of RapidFit head Bart Wilberts.

If you’re an automotive development or quality engineer, chances are you’ve gotten used to working with an array of fixtures, development bucks, and cubes to guide you through the vehicle development process. Clay models and surface release models for styling, prototype assembly bucks and blue bucks for engineering, fixtures for quality control — did you ever ask yourself if all these tools are necessary? And whether they speed you up or actually slow you down? RapidFit has a radical answer. You can replace all those tools and fixtures with one: the RapidFit Smart Cube. Bart Wilberts, RapidFit Managing Director, explains how that works.

A headshot of Bart Wilberts, General Manager of RapidFit.
A headshot of Bart Wilberts, General Manager of RapidFit.

Where does the concept of the Smart Cube come from?

To answer that, we need to step back and look at the industry we’re serving. Automotive industry reports consistently show that the brands with the highest replacement rates command the highest market share. In other words, if you want to sell more cars, you need to combine a great design with a really short time-to-market, hence speeding up the development process. And if you don’t want that to encroach on your profit margins, it wouldn’t hurt if you could decrease the tooling costs too. The need to consistently bring newer developments to the market at lower costs means that the automotive industry is under pressure to make the vehicle development process leaner, faster, and more flexible. That’s the need that the Smart Cube was made to address.

A close-up shot of a headlight and front bumper attached to the cube of a traditional London taxi.
A close-up shot of a headlight and front bumper attached to the cube of a traditional London taxi.

What’s different about the RapidFit Smart Cube?

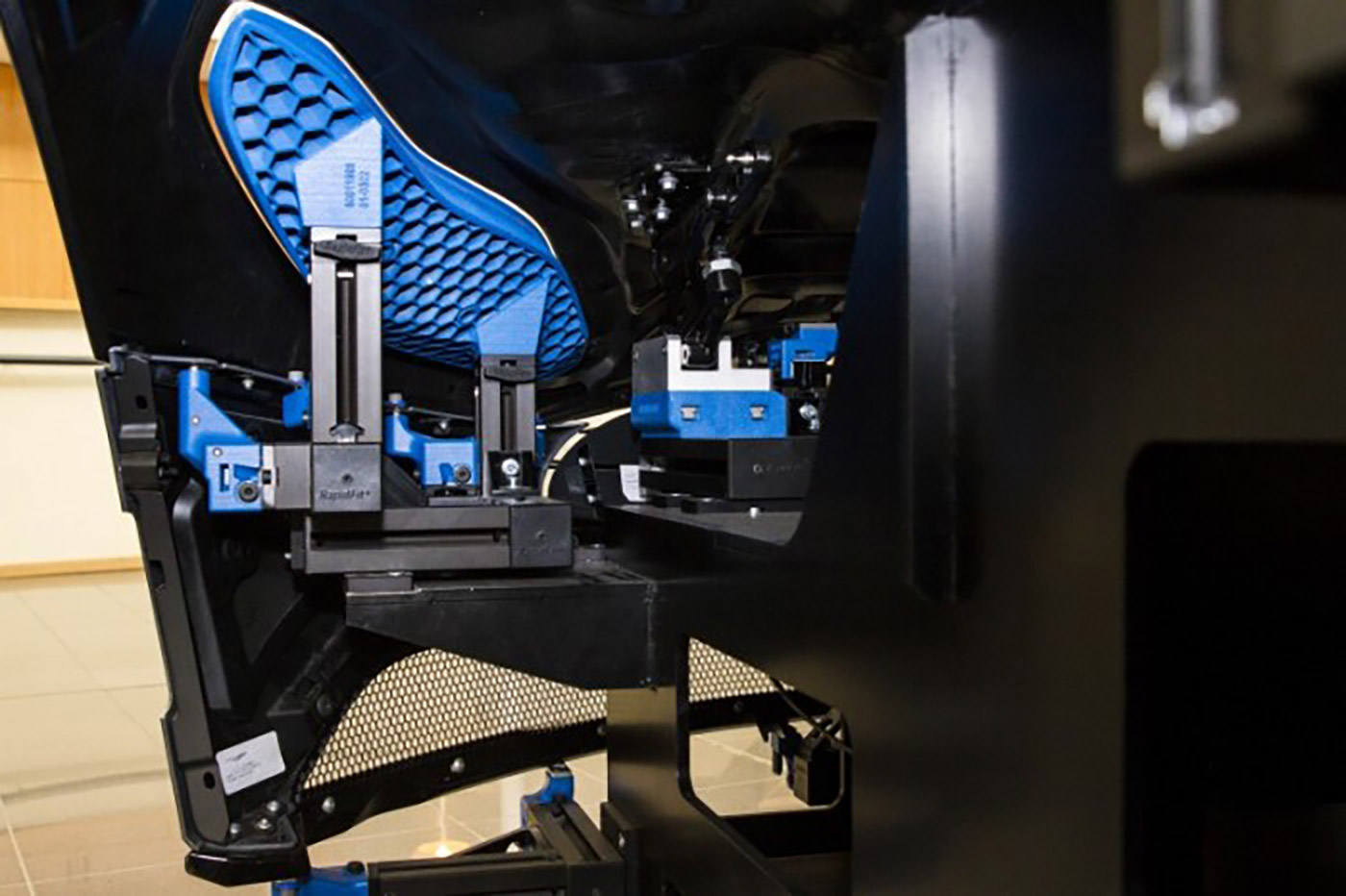

The key characteristic of the Smart Cube is that it’s fully modular. You can easily exchange and update separate modules — anything from a dashboard to a handle — and keep the tool up-to-date through new CAD revisions and design maturation. A traditionally-constructed cube, on the other hand, is essentially a single assembly of milled aluminum. Not only is it extremely expensive, but it’s also intrinsically costly to modify. Our Smart Cube, on the other hand, enables such modifications at a low direct and indirect cost, thanks to the modularity and printed end elements. Such updates can be performed ‘offline’ as the Cube stays at the customer’s disposition. That’s why the Smart Cube is a real game-changer. It allows our customers to start using the Cube much earlier in the development process and continue using it throughout production. They can update parts as they go along without losing time or money reconstructing the entire Cube. One of our customers is the London Taxi Company based in Coventry, UK. When the company recently relaunched the taxicab as a fully-electric vehicle, the project was typical of the electric vehicle development world — throughput time was extremely short.

For the London Taxi Company, the Smart Cube was instrumental in bringing a new vehicle concept to the market in record time. My team at RapidFit is thrilled to be among the enablers for the relaunch of such an iconic car." - Bart Wilberts, RapidFit Managing Director

A timelapse of car parts being added to a cube of a traditional London taxi
A timelapse of car parts being added to a cube of a traditional London taxi

Is the Smart Cube a one-size-fits-all solution, or can car manufacturers choose to apply it in specific phases of the development cycle?

It’s definitely flexible. What’s great about the Smart Cube is that customers can choose either a complete or a partial cube depending on what they want to work on. If they want to work on every part of a vehicle, they can take the full cube and use it as a development tool that helps different design teams collaborate. If they prefer to hone in on a single section, they can do so without compromising on space or budget. We work with a lot of customers, including a few German OEMs, that tend to prefer partial cubes. In those cases, we provide certain sections rather than a frame of the entire vehicle. Others, like a San Francisco-based car manufacturer, require even more bespoke solutions — something of a hybrid cube that’s part fixed and part modular. This helps them start on quality control early in the development process, and add more parts to the cube as time goes on, so it grows with their concept. This approach means that potential problems can be spotted much earlier in the process, driving exponential cost reduction. The Smart Cube is all about modularity, so really, it’s about giving the client only what they need, when they need it.

How do you start developing the Cube?

Everything we do is customized, and no two projects are the same, but they always follow the same structured approach. We always start the design process by talking to the customer about their ideas and requirements. We’re looking for any details the customer can give us to make it easier for them to accurately measure and check the quality of the parts. Based on the customer’s CAD, we define together which parts will be included in the Cube as this will ultimately determine the cost. For each part, we will then define which sections are to be simulated and how the part needs to be located. For holding the actual parts, no compromises are made: we ensure that all clips and details are fully represented in the Cube. Then we design the fixtures to meet the customer's needs, using CATIA or NX in combination with the Materialise Magics Suite and in-house developed design automation software.

The biggest difference from conventional cubing is that we can do up to 80% of the engineering based on preliminary CAD designs. We can even produce the Cube on preliminary CAD, because nearly all subsequent modifications are small changes to individual modules. Since these modules are 3D-printed, owing to the nature of 3D Printing the costs of the modifications are low and predictable. The Cube can be made available to the customer starting in the early stages of the development, all the way down to the production stage where it can continue its life as a production gauge.

tesla-smart-cube-delivery
Two men stand next to a RapidFit Smart Cube

It's clear how the Smart Cube contributes to reduced time-to-market, but what role does it play for the quality teams and program management?

The automotive industry is used to having a variety of fixtures, development bucks, cubing systems, and so on to assess how accurately single parts and assemblies fit. The Smart Cube lets you replace that entire toolkit — a very costly and cumbersome toolkit — with one solution that combines a majority of the functions, including those of a production gauge. Our customers use the Smart Cube from design and development right through production. What’s more, our modular approach allows different teams working on the vehicle design to collaborate more effectively. You build your Cube at an early design stage and continuously evolve it with CAD updates. This way, you have an early entry point to start prototyping and visualizing the separate aspects of the project. Our approach really pushes the different design teams to collaborate.
